RV Solar 101: Panels, Batteries, Inverters & Off-Grid Power

A beginner’s guide to RV solar systems: how they work, what each component does, and how to choose a system that fits the way you travel.

A quiet campsite. No electrical hookup. Your refrigerator stays cold, your devices stay charged, and the lights come on after sunset. A thoughtfully designed RV energy system can make that possible—but its capabilities depend on much more than the number of panels on the roof.

This guide explains the essentials of solar panels, lithium batteries, charge controllers, inverters, and charging sources. Along the way, we’ll look at realistic energy examples and the differences between 12V, 24V, and 48V systems.

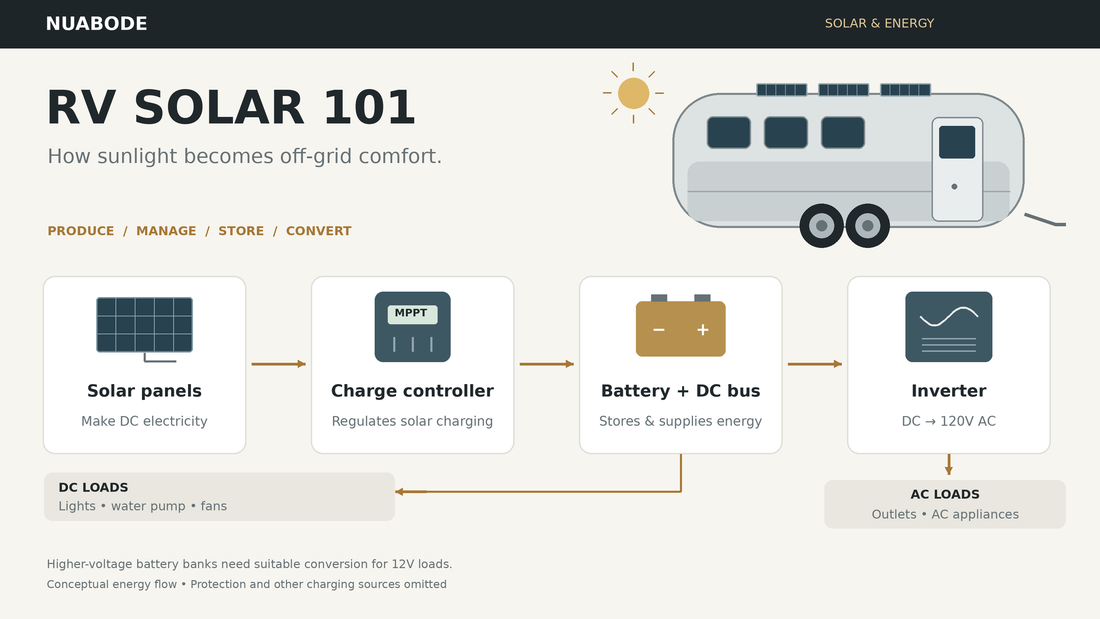

1. How an RV solar system works

Solar panels turn sunlight into direct-current (DC) electricity. A charge controller manages that output and supplies the battery-side electrical system. While sunlight is available, solar can help serve active loads and charge the batteries. When demand exceeds solar production, the battery bank supplies the difference.

Your RV’s lights, water pump, and many fans usually use 12V DC. Appliances such as a microwave or a household refrigerator may use 120V alternating current (AC), supplied through an inverter when you are off-grid.

2. Solar panels: production starts here

A panel’s watt rating describes its output under standard test conditions. Three 200W panels form a 600W array. That rating is a useful starting point, but it is not a promise of continuous production throughout the day.

Actual output changes with shade, temperature, weather, season, location, panel angle, and roof layout. Even a small shadow from an air conditioner or roof vent can affect production. A campsite under trees may be wonderfully private while providing very little solar energy.

Watts and watt-hours are different

Watts (W) measure power at a moment in time. Watt-hours (Wh) measure energy over time. One kilowatt-hour (kWh) equals 1,000Wh.

A 100W device running for five hours uses 500Wh. A 1,500W appliance running for ten minutes uses 250Wh. A high-power appliance used briefly can consume less energy than a modest load left running all day.

How much can a 600W array produce?

For illustration, assume four peak-sun hours—the day’s sunlight expressed as equivalent hours at full intensity. That is different from four hours of daylight.

600W × 4 peak-sun hours = 2,400Wh, or 2.4kWh, before losses.

Using an illustrative 80% net yield gives about 1.92kWh reaching the DC system. Further battery and inverter losses affect the energy ultimately delivered to appliances. This is a planning example, not a daily production guarantee; heavy shade or poor weather can reduce output substantially.

Rigid, flexible, and portable panels

Rigid panels are often a practical choice for permanent roof installations because they allow airflow underneath and offer durable mounting options. Flexible panels can help where weight, height, or roof shape limits the options, but heat, attachment methods, and service life need careful evaluation. Portable panels let you park in shade and place panels in sunlight, within the limits of their cables and compatible charging equipment.

On an Airstream, roof curvature, mounting details, weather sealing, equipment clearances, and future maintenance access all influence the design.

3. Charge controllers: matching solar to the batteries

A solar charge controller manages the energy from the array and applies a charging profile suitable for the battery bank. Many modern RV installations use MPPT—Maximum Power Point Tracking—controllers, which adjust the solar operating point as conditions change.

The controller must suit the battery voltage and chemistry, array voltage and current, and charging requirements. Solar-panel voltage can be substantially higher than battery voltage. Series and parallel panel arrangements therefore need to be selected for the controller’s limits, including the rise in panel open-circuit voltage in cold weather.

Choosing a controller by the total panel wattage alone is not enough.

4. Batteries: storing energy for later

Batteries supply power after sunset, during cloudy periods, and whenever electrical demand exceeds incoming charging power. A larger bank increases your stored reserve; it does not increase solar production.

Lithium iron phosphate (LiFePO4) batteries are widely used in RV upgrades. Compared with many lead-acid installations, they can offer lower weight, more usable capacity, relatively steady voltage, and faster charging when the battery and charging equipment support it. Service life depends on the product, temperature, charging settings, and use.

Lithium batteries need a compatible Battery Management System (BMS). Some batteries contain one; others require an external BMS and coordinated system controls. The BMS protects the cells, but it does not replace correctly sized wiring, fuses, or disconnects.

Temperature limits matter. Many LiFePO4 batteries restrict charging at low temperatures. Follow the specific manufacturer’s limits and use appropriate charge inhibition or heating where required.

Compare capacity in kWh, not just amp-hours

Nominal battery energy = nominal volts × amp-hours.

A 12.8V, 100Ah battery stores approximately 1,280Wh, or 1.28kWh. Four provide 5.12kWh of nominal storage. A 51.2V, 100Ah battery also stores approximately 5.12kWh. Their amp-hour ratings alone do not describe how much energy they hold.

Usable energy is lower than nominal energy after accounting for operating reserve, discharge limits, temperature, and conversion losses. Also check the battery’s continuous and peak current limits: enough stored energy does not automatically mean enough instantaneous power for a large inverter.

5. Inverter, converter, and inverter/charger: what’s the difference?

A pure sine wave inverter supplies AC suitable for a wide range of appliances. Its continuous output, starting surge capability, temperature rating, battery-side current requirements, and connection to the RV’s AC distribution all matter.

VA and watts are not interchangeable. A 5,000VA inverter/charger is not necessarily rated to deliver 5,000W continuously. Check the manufacturer’s continuous watt rating and operating conditions.

Inverter size determines which loads can run together. Battery energy largely determines how long they can run. A 1,500W load operating for one hour consumes 1.5kWh at the appliance and requires more from the batteries because conversion is not perfectly efficient.

Some inverter/chargers offer power assist or adjustable shore-power limits. Those features depend on the selected equipment and configuration. Adding an inverter also does not automatically make every outlet or appliance available off-grid.

6. Understanding 12V, 24V, and 48V systems

Traditional RV house systems commonly use 12V batteries and DC appliances. That can be an excellent choice for efficient essentials and many well-designed inverter installations. Higher-voltage banks become attractive as power requirements grow.

Power ≈ voltage × current. For a 4,800W DC demand, simplified current is 400A at 12V, 200A at 24V, or 100A at 48V. Actual battery voltage varies, and supplying a 4,800W AC load requires additional input power for inverter losses.

Lower current can reduce resistive losses for the same cable resistance and make high-power wiring more manageable. It does not eliminate the need for correctly rated cables, protection, and equipment.

A 48V system requires compatible charging and inverter equipment, plus suitable conversion to supply existing 12V loads. It is a broader integration decision. For many owners, a carefully designed 12V system is the practical choice; substantial climate and appliance loads may justify considering 48V.

Explore NuAbode’s 48V Airstream energy architecture for a closer look.

7. Can RV solar run air conditioning?

Yes—with a suitable battery, inverter, and charging system, selected air-conditioning equipment can operate off-grid. Starting it and keeping it running for several hours are separate design challenges.

Assume, for illustration, an air conditioner consumes 1,200W continuously for four hours:

1,200W × 4 hours = 4.8kWh at the appliance.

Battery demand is higher after inverter losses, and the refrigerator, lights, and other loads still need energy. A 600W array cannot continuously offset a 1,200W air-conditioning load on its own; the battery bank supplies the shortfall.

Real consumption depends on equipment efficiency, weather, humidity, insulation, thermostat setting, and compressor cycling. Starting surge must also fit the system’s limits. A compatible soft-start device may help with startup, but it does not remove the energy required during operation.

Meaningful air-conditioning autonomy starts with an energy budget and a practical recharge plan.

8. Charging when the sun is not enough

Solar can be one part of a coordinated charging system:

• Shore power: A compatible converter/charger or inverter/charger replenishes the bank from campground electricity. Charging demand must share the available supply with running appliances.
• Alternator charging: A correctly designed DC-to-DC charger can charge while traveling. Tow-vehicle alternator capacity, cable length, connectors, voltage, and thermal limits all affect capability. A factory trailer connector should not be assumed to provide high-output charging.
• Generator charging: A compatible generator and charger provide another option when weather or consumption exceeds solar production.
• Solar: Quiet charging whenever enough sunlight reaches the array.

All charging sources must be configured for the battery system. A large bank with limited charging may take longer to recover than your travel schedule allows.

9. How much solar and battery capacity do you need?

Start by listing your appliances, their measured or specified consumption, and expected daily use. Account for inverter idle draw and conversion losses. Refrigerators deserve particular attention: compressor models and absorption models operating on electricity can have very different consumption.

These figures illustrate the method. Your RV’s consumption may be much higher or lower. Two days at this load level require 3.8kWh delivered to appliances before any new charging; the required nominal battery capacity must also allow for reserve and system losses.

Ask three questions: What will you consume each day? How much reserve do you want without charging? How will you replace the energy you use? Those answers guide panel capacity, battery storage, and charging equipment.

10. Comparing NuAbode’s 600W, 1,000W, and 1,600W pathways

The following planning pathways reflect NuAbode’s published solar offerings. Roof capacity and final equipment depend on your trailer and approved scope. The production column uses the same four peak-sun hours and 80% illustrative net yield; it is not a performance guarantee.

The smaller pathway is a starting point for efficient essentials; the middle adds charging and storage headroom; the larger supports planning for more demanding use. None guarantees a specific air-conditioning runtime. Custom 48V systems start at $38,000+ and require a separate architecture review.

These are starting investments, not fixed quotes. Final pricing follows review of the RV, installation conditions, selected components, charging arrangement, and fabrication. Taxes, freight, repairs, structural changes, and project-specific upgrades can add cost. See the current NuAbode Solar & Energy offerings for details.

11. The components you don’t see still matter

Reliable performance depends on appropriately sized wiring, busbars, fuses and breakers, disconnects, protected cable routes, secure mounting, ventilation, and correct AC grounding and bonding. Protection equipment must be suitable for the system’s voltage and available fault current.

A battery monitor can track current flow and estimate state of charge when configured correctly. Solar and inverter monitoring help you understand what is being produced and consumed. Remote monitoring, where supported, also depends on an available communications connection.

Clear labels, documentation, accessible service points, and owner training make the system easier to use and maintain.

12. Common mistakes to avoid

• Confusing watts with runtime. Panel and inverter wattage do not tell you how many hours your appliances will operate.
• Adding storage without a recharge plan. Extra batteries are a reserve, not a source of new energy.
• Expecting full output in shade. Plan around where and when you actually camp.
• Ignoring battery current limits. The bank, BMS, cables, and protection must support the inverter’s demand.
• Buying components before defining the system. Premium products still need compatible voltages, controls, charging profiles, and distribution.

A system designed around your travels

The right upgrade begins with how you camp: the appliances you use, the places you travel, the length of your stays, and your willingness to use shore power or a generator. From there, generation, storage, charging, and distribution can be planned together.

NuAbode designs and installs integrated RV energy systems in Canton, Georgia, with particular experience in Airstream upgrades. Whether your goal is dependable essentials or substantial off-grid capability, a review of your coach and energy needs is the next step.
